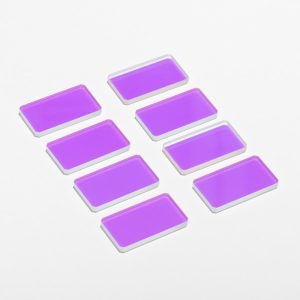

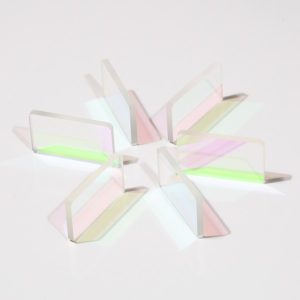

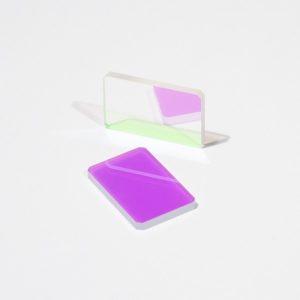

1550nm Optical Mirror is an optical element specially designed to reflect light with a wavelength of around 1550 nanometers. This kind of reflector has the characteristics of high reflectivity, low loss, and strong durability. It can also be customized with different sizes, shapes and coatings according to different application requirements. It has a wide range of applications in optical communications, laser radar and other fields.
Model:1550nm Optical Mirror
Specifications: Customized
Material: Optical Glass
Features of 1550nm reflector
High reflectivity: It has extremely high reflectivity in the 1550nm band and can effectively reflect the incident light back.
Low loss: The loss generated during the reflection process is small, ensuring the transmission quality of the optical signal.
Strong durability: It has good mechanical properties and environmental adaptability, and can work stably in harsh environments.
Strong customization capability: Reflectors of different sizes, shapes and coatings can be customized according to different application requirements.
Product Specifications
Reflection band: 1550nm
Test angle: 45 degrees
Thickness tolerance: ±0.1mm
Spectral reflectance parameter diagram
Application of 1550nm reflector
Optical communication: In fiber-optic communication systems, 1550nm is a commonly used communication wavelength. 1550nm reflectors are used for reflection, beam splitting and coupling in the optical path to improve signal transmission efficiency.
LiDAR: In the fields of unmanned driving and robot navigation, LiDAR uses 1550nm laser for distance and speed measurement. 1550nm reflectors are key components that reflect and focus lasers.
Fiber-optic sensor: In fiber-optic sensing systems, 1550nm reflectors are used to construct optical paths to measure physical quantities.
